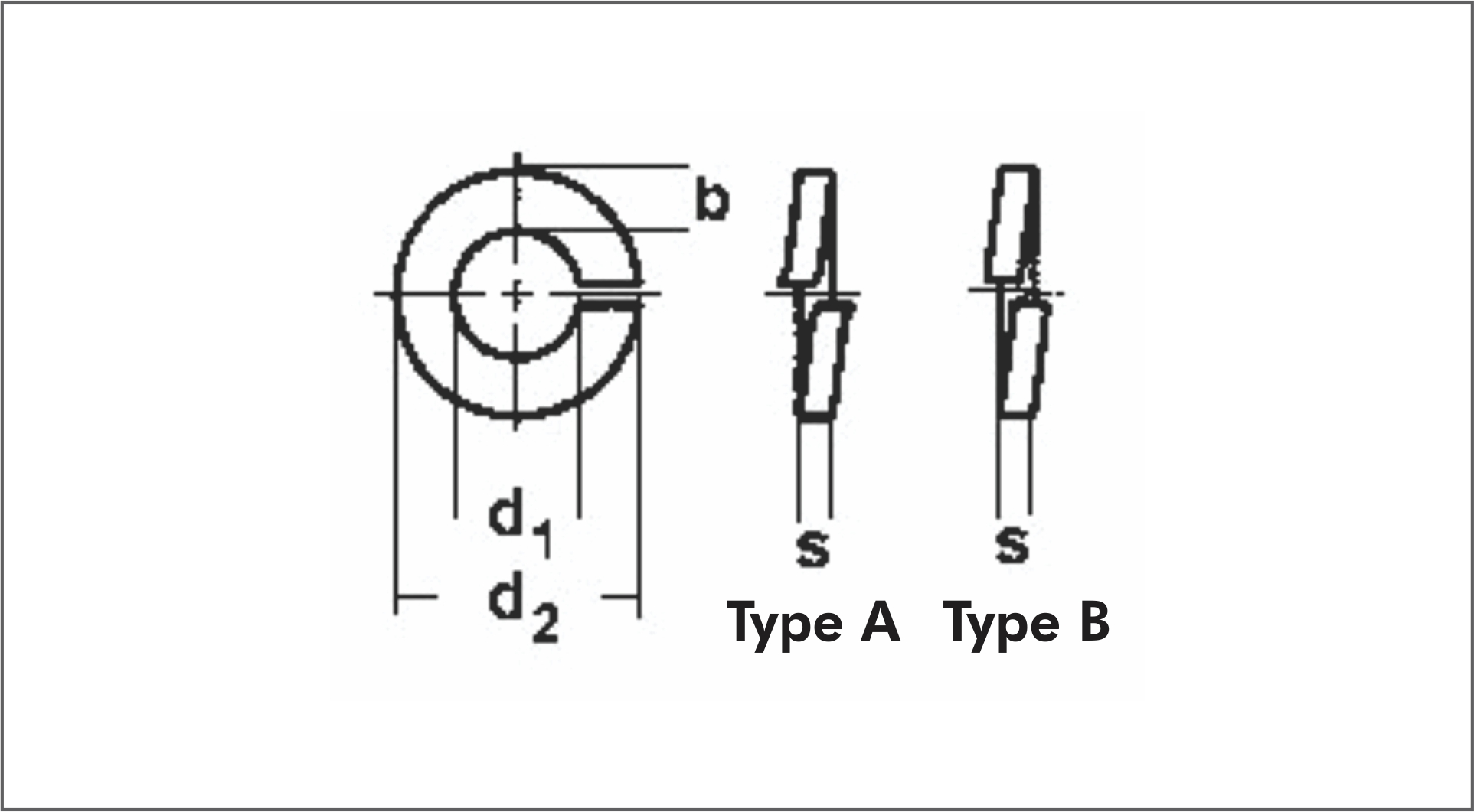

DIN 127 Spring Lock Washer

d₁	for thread size	d₂	b	s
2.1	M 2	4.4	0.9	0.5
2.4	M 2.3	4.9	1	0.6
2.6	M 2.5	5.1	1	0.6
3.1	M 3	6.2	1.3	0.8
3.6	M 3.5	6.7	1.3	0.8
4.1	M 4	7.6	1.5	0.9
5.1	M 5	9.2	1.8	1.2
6.1	M 6	11.8	2.5	1.6
7.1	M 7	12.8	2.5	1.6
8.1	M 8	14.8	3	2
10.2	M 10	18.1	3.5	2.2
12.2	M 12	21.1	4	2.5
14.2	M 14	24.1	4.5	3
16.2	M 16	27.4	5	3.5
18.2	M 18	29.4	5	3.5
20.2	M 20	33.6	6	4
22.5	M 22	35.9	6	4
24.5	M 24	40	7	5
27.5	M 27	43	7	5
30.5	M 30	48.2	8	6
33.5	M 33	55.2	10	6
36.5	M 36	58.2	10	6
39	M 38	61.2	10	6
42.5	M 42	68.2	12	7
45.5	M 45	71.2	12	7
49	M 48	75	12	7
53	M 52	83	14	8
57	M 56	87	14	8
61	M 60	91	14	8
65	M 64	95	14	8
69	M 68	99	14	8
73	M 72	103	14	8
81	M 80	111	14	8
91	M 90	121	14	8
101	M 100	131	14	8
