DIN 128 Spring Lock Washer

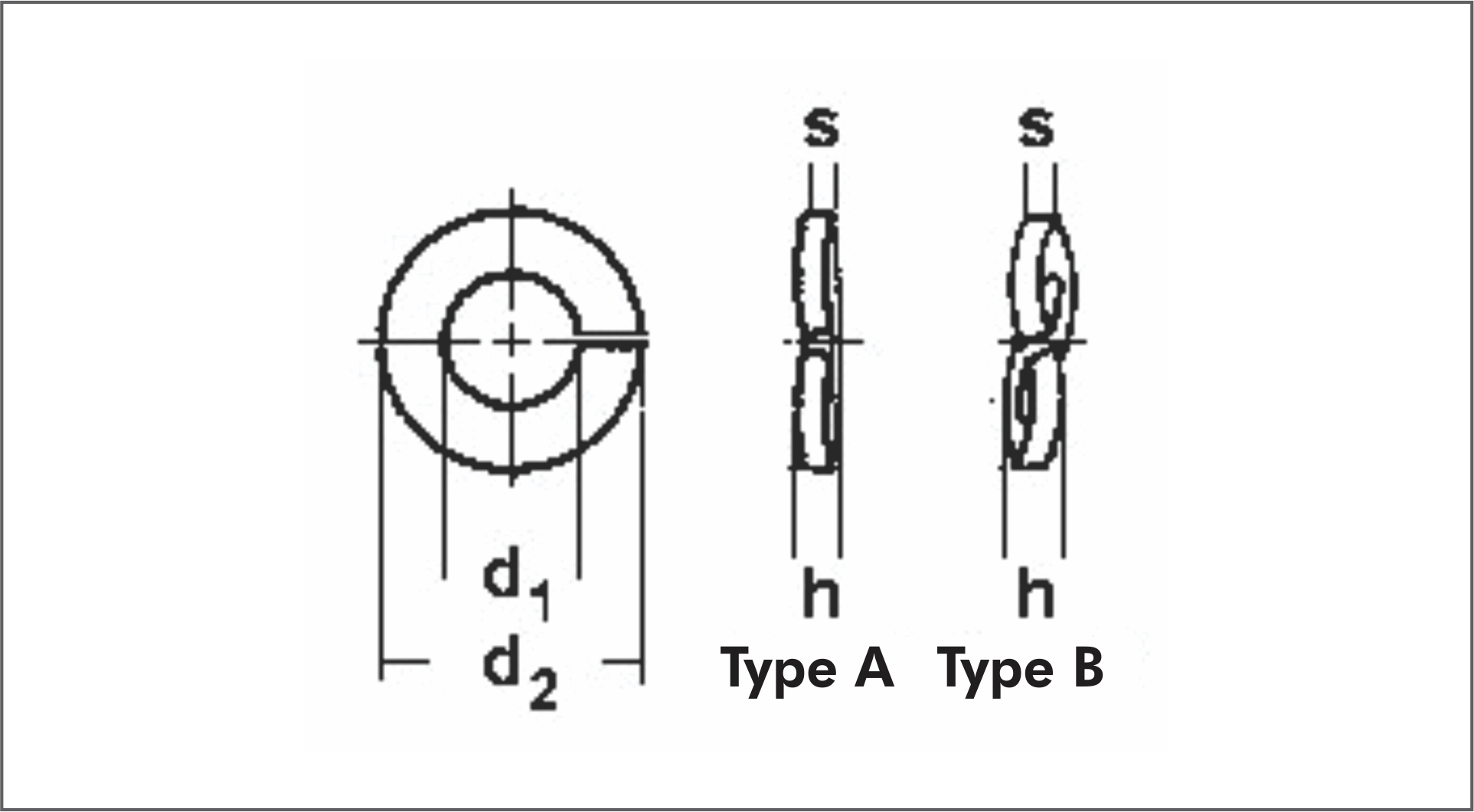

d₁	for thread size	d₂	s	h_min	h_max
2.1	M 2	4.4	0.5	0.7	0.9
2.4	M 2.3	4.9	0.6	0.9	1.1
2.6	M 2.5	5.1	0.6	0.9	1.1
3.1	M 3	6.2	0.7	1.1	1.3
3.6	M 3.5	6.7	0.7	1.1	1.3
4.1	M 4	7.6	0.8	1.2	1.4
5.1	M 5	9.2	1	1.5	1.7
6.1	M 6	11.8	1.3	2	2.2
7.1	M 7	12.8	1.3	2	2.2
8.1	M 8	14.8	1.6	2.45	2.75
10.2	M 10	18.1	1.8	2.85	3.15
12.2	M 12	21.1	2.1	3.35	3.65
14.2	M 14	24.1	2.4	3.9	4.3
16.2	M 16	27.4	2.8	4.5	5.1
18.2	M 18	29.4	2.8	4.5	5.1
20.2	M 20	33.6	3.2	5.1	5.9
22.5	M 22	35.9	3.2	5.1	5.9
24.5	M 24	40	4	6.5	7.5
27.5	M 27	43	4	6.5	7.5
30.5	M 30	48.2	6	9.5	10.5
36.5	M 36	58.2	6	10.3	11.3
42.5	M 42	68.2	7	12	13
49	M 48	75	7	12	13
57	M 56	87	8	14	15.5
57	M 56	87	8	14	15.5
65	M 64	95	8	14	15.5
73	M 72	103	8	14	15.5
81	M 80	111	8	14	15.5
91	M 90	121	8	14	15.5
101	M 100	131	8	14	15.5
