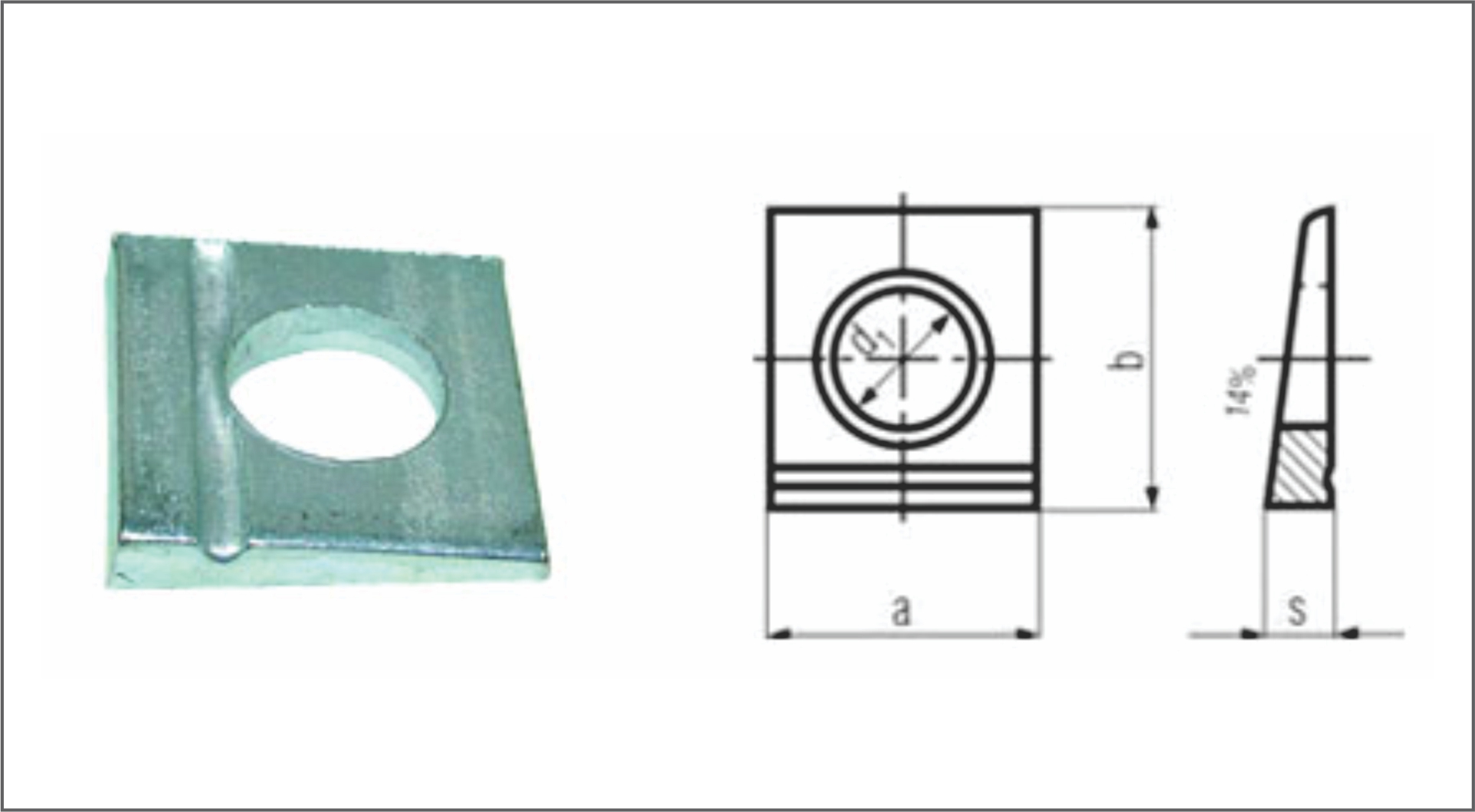

DIN 435
| Size No | D | A | H | Weight for KG / 1000 PCS |
|---|---|---|---|---|
| M8 | 9 | 22 | 4.6 | 10.1 |
| M10 | 11 | 22 | 4.6 | 9.4 |
| M12 | 14 | 26 | 6.2 | 20.1 |
| M16 | 18 | 32 | 7.5 | 35.6 |
| M20 | 22 | 40 | 9.2 | 67 |
| M22 | 24 | 44 | 10 | 90 |
| M24 | 26 | 56 | 10.8 | 143 |
