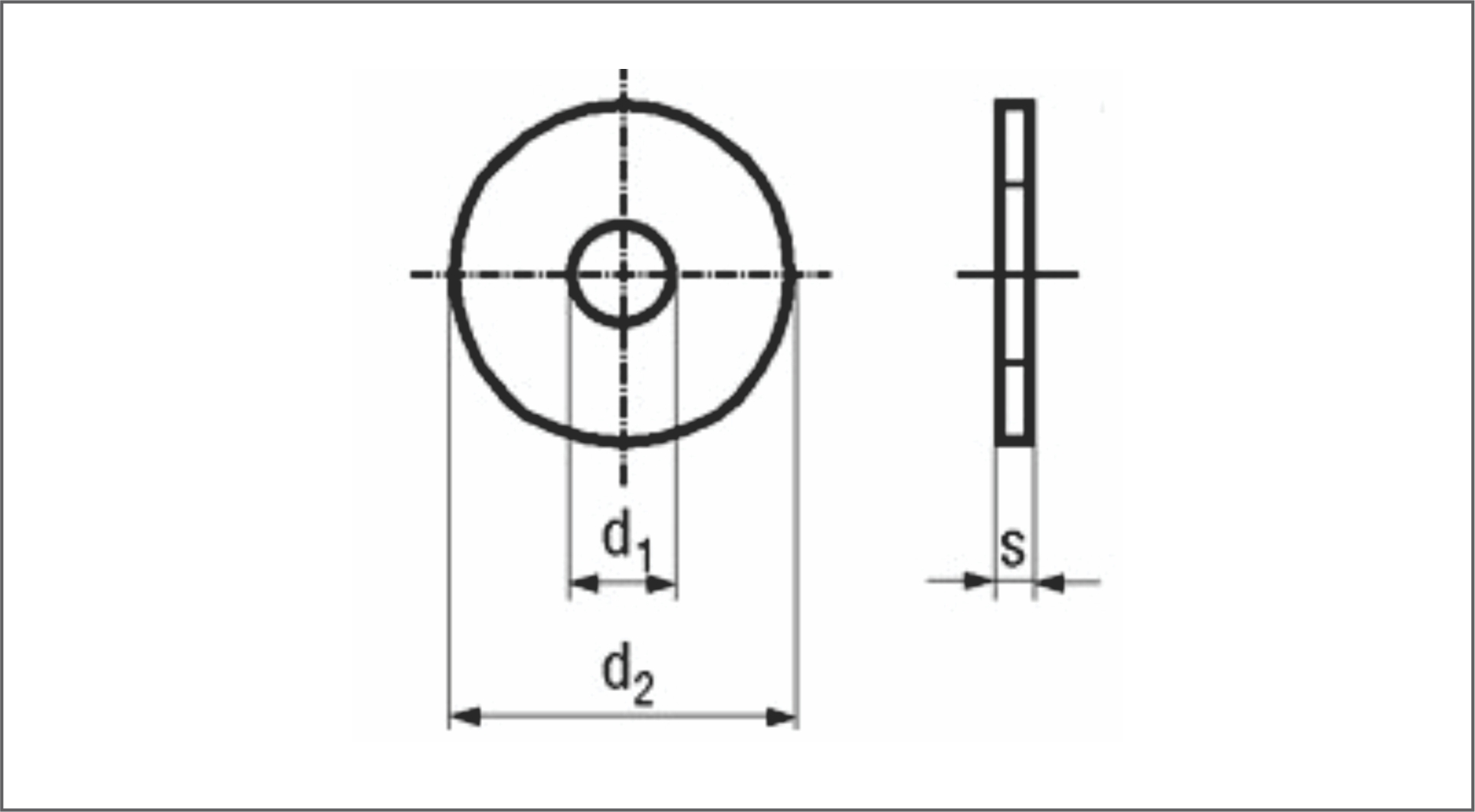

DIN 440 V (ISO 7094)
| Size No | I.D | O.D | THK | Weight for KG / 1000 PCS |
|---|---|---|---|---|
| M5 | 5.5 | 18 | 2 | 3.52 |
| M6 | 6.6 | 22 | 2 | 5.28 |
| M8 | 9 | 28 | 3 | 12.6 |
| M10 | 11 | 34 | 3 | 18.5 |
| M12 | 13.5 | 44 | 4 | 41.6 |
| M16 | 17.5 | 56 | 5 | 84 |
| M20 | 22 | 72 | 6 | 169 |
| M22 | 24 | 80 | 6 | 210 |
DIN 440 V
| Size No | I.D | O.D | THK | Weight for KG / 1000 PCS |
|---|---|---|---|---|
| M5 | 5.5 | 18 | 2 | 3.52 |
| M6 | 6.6 | 22 | 2 | 5.28 |
| M8 | 9 | 28 | 3 | 12.6 |
| M10 | 11 | 34 | 3 | 18.5 |
| M12 | 13.5 | 44 | 4 | 41.6 |
| M16 | 17.5 | 56 | 5 | 84 |
| M20 | 22 | 72 | 6 | 169 |
| M22 | 24 | 80 | 6 | 210 |
