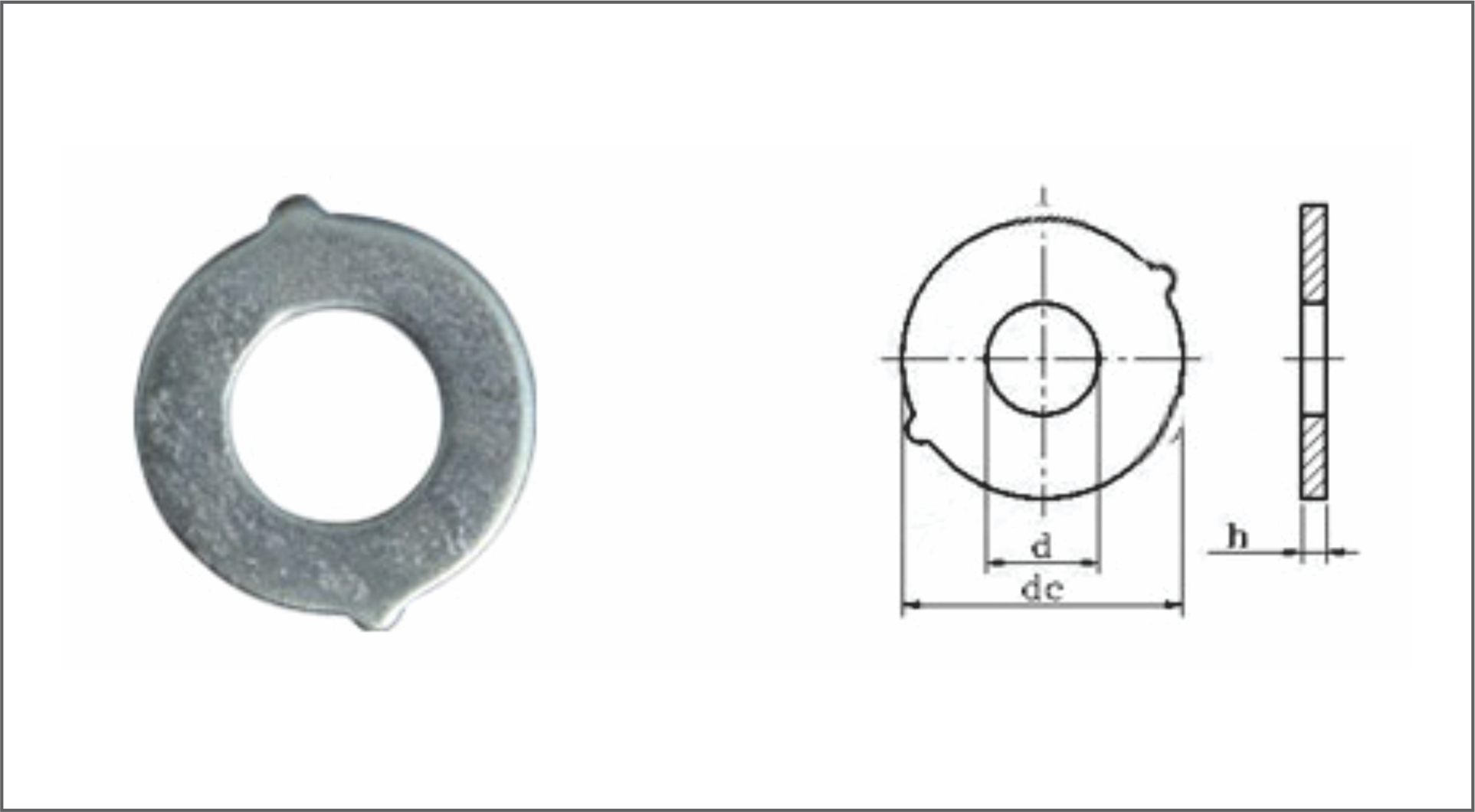

High Strength Structural Washer

high strength structural washer

High Strength Structural Washer

Size

d

D

H

Max	Min.
18.43	18.00
22.52	22.00
24.52	24.00
26.52	26.00
30.52	30.00
33.62	33.00
39.62	39.00

Max	Min.
34.00	32.40
42.00	40.40
44.00	42.40
50.00	48.40
56.00	54.10
60.00	58.10
72.00	70.10

Max	Min.
4.60	3.10
4.60	3.10
4.60	3.40
4.60	3.40
4.60	3.40
4.60	3.40
4.60	3.40

M16

M20

M22

M24

M27

M30

M36
